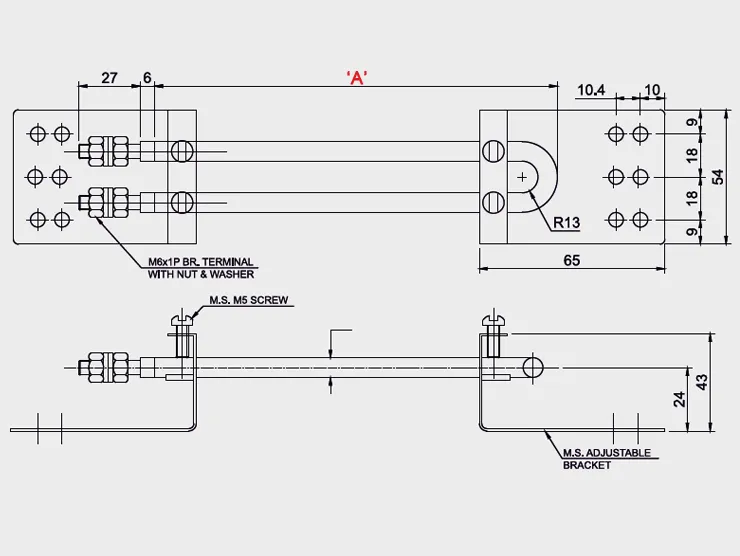

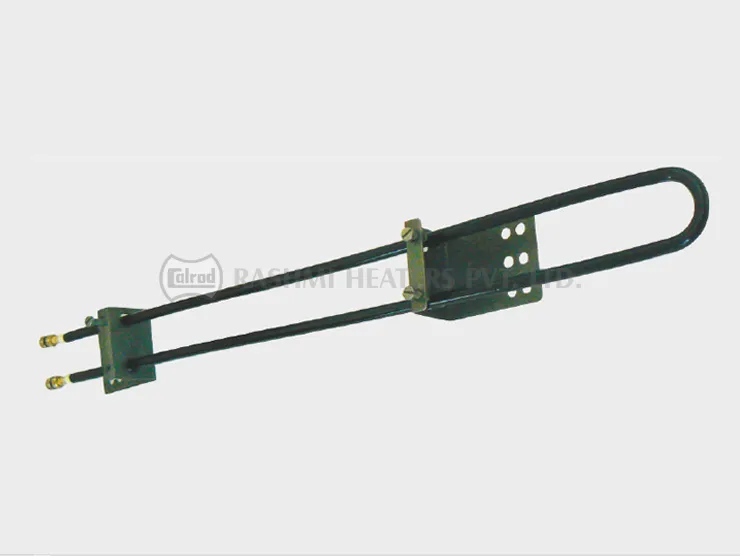

U-Shaped Air Heating Elements
×
![]()
Heater in S.S.304 Tube CAT.NO. |
Heater in INCOLOY Tube CAT NO. |
'A' LENGTH IN mm |
RATING & VOLTAGE |
RH-925982
|
RH-921662
|
610 (24")
|
1000W /230V
|
RH-925983
|
RH-921663
|
762 (30")
|
1000W /230V
|
RH-925984
|
RH-921664
|
762 (30")
|
1500W /230V
|
RH-925985
|
RH-921665
|
990 (39")
|
1500W /230V
|
RH-925986
|
RH-921666
|
990 (39")
|
2000W /230V
|
RH-925987
|
RH-921667
|
457 (18")
|
750W /230V
|
RH-925988
|
RH-921668
|
254 (10")
|
500W /250V
|
TUBE DIA 8 MM & COLD PORTION 50 MM |
|||

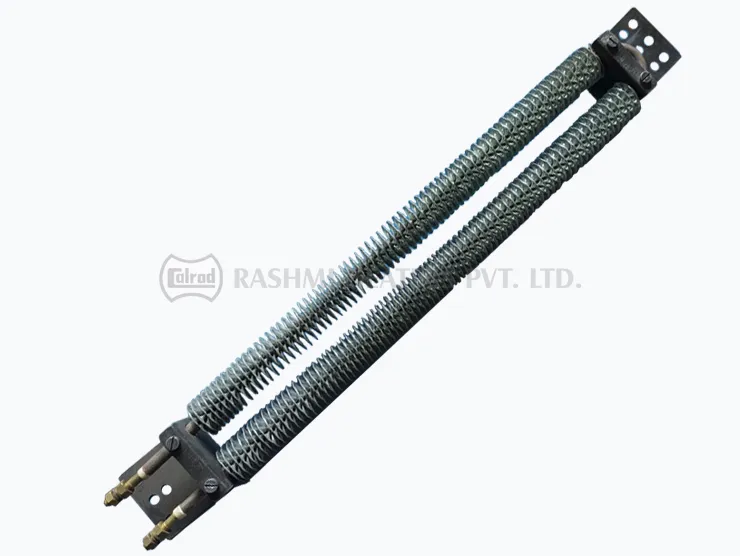

| INCOLOY OR SS AIR HEATING ELEMENTS CAN BE SUPPLIED WITH 28 MM DIA GI Plated OR SS FINS. | |||
 |
|||
U-SHAPED INCOLOY AIR HEATING ELEMENTS WITH 150MM COLD PORTION |
||
CAT NO. |
'A' LENGTH in mm |
RATING & VOLTAGE |
RH-3128 |
711 (28") |
1000W /230V |
RH-3129 |
863 (34") |
1000W /230V |
RH-3130 |
863 (34") |
1500W /230V |
RH-3131 |
1092 (43") |
1500W /230V |
RH-3132 |
1092 (43") |
2000W /230V |
RH-3133 |
558 (22") |
750W /230V |
RH-3134 |
355 (14") |
500W /250V |
